Description

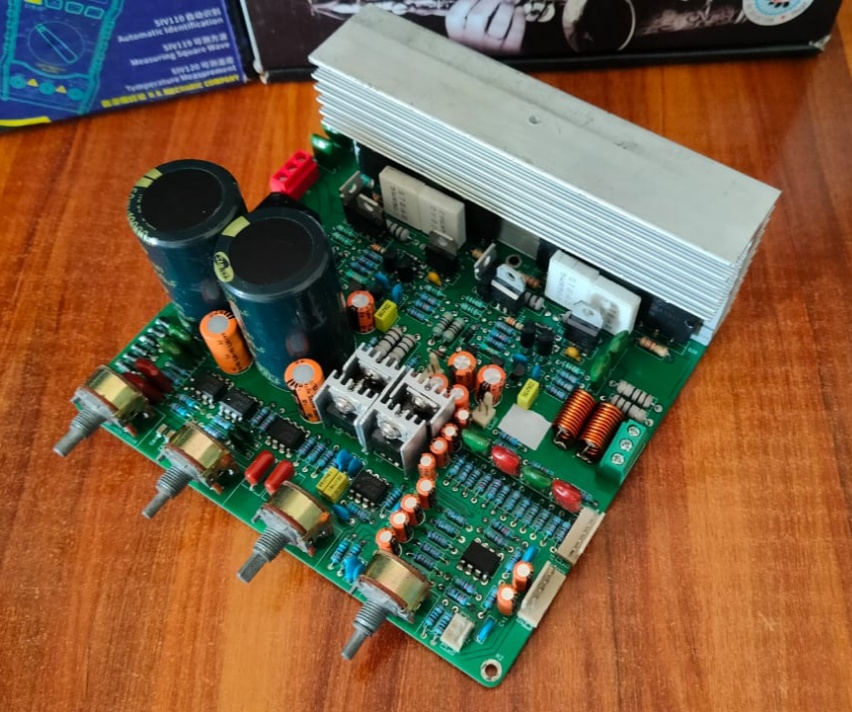

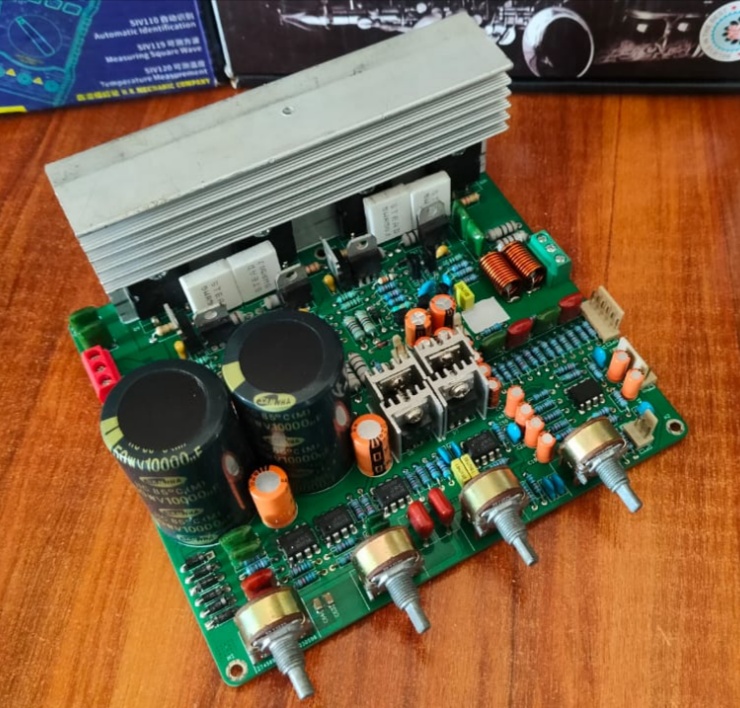

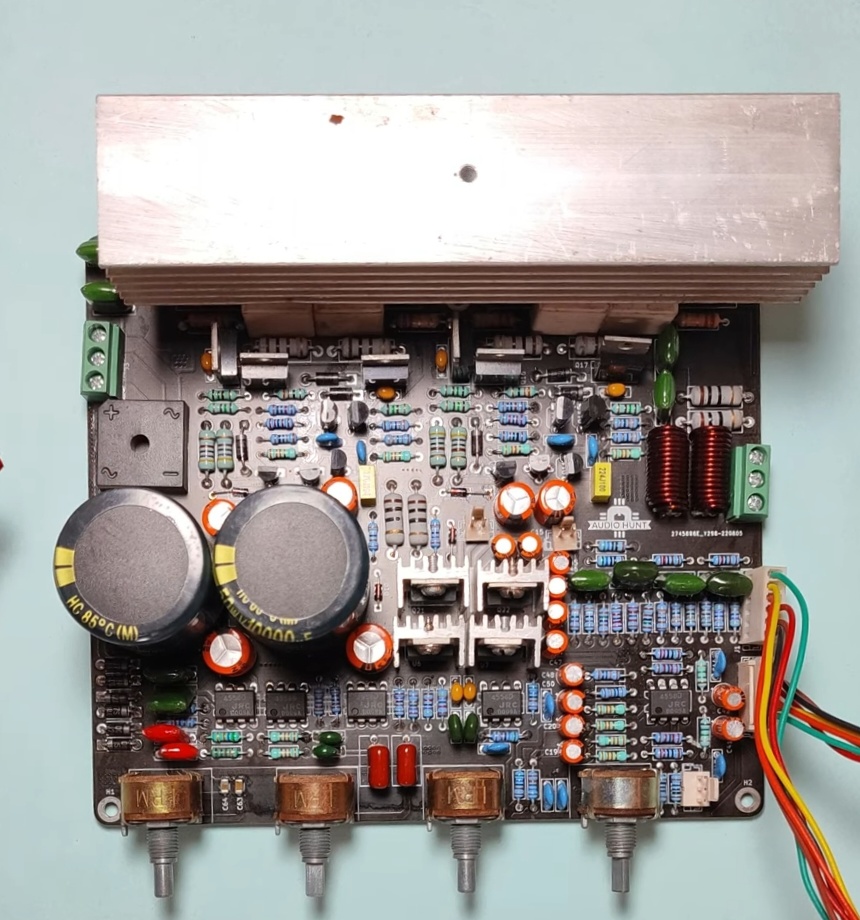

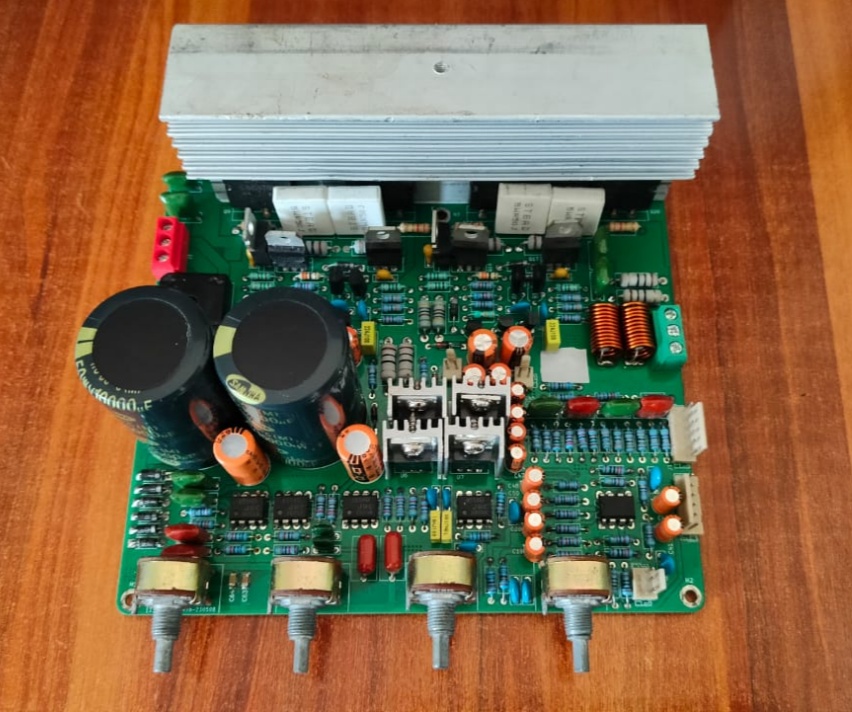

Hi Fi 200Watt Amplifier Board 5200-1943 Transistor

Audiophile Grade Board with Excellent quality and amazing sound

Brand Name – Smart Technology / Audio Hunt

• Dual Layer PCB by JLC
• Using 2 Pair 5200/1943 CDIL Transistor
• Tip41 and Tip42 Transistor in Driver Section
• High Quality Keltron Capacitor and 1% Resistor
• 12 Volt out for Fan
• 5 Volt out for Bluetooth Kit
• With 5 Op-Amp IC (4x JRC 4558, 1x NE5532)
• 4 Stereo Potentiometer (For Bass, Mid, Treble and Balance)
• 1 Potentiometer with Extra Connector Wire For Volume
• 10 Amp Bridge Rectifier
• 10000uf/50 volt Samwha Capacitor
• Use 5A (24-0-24 to 30V-0-30V transformer)

Note:

1. Power Supply Capacitor (4700 uf/50 v, 4700 uf/63 v, 6800 uf/50 v, 10000 uf/63 v) as per your Requirement

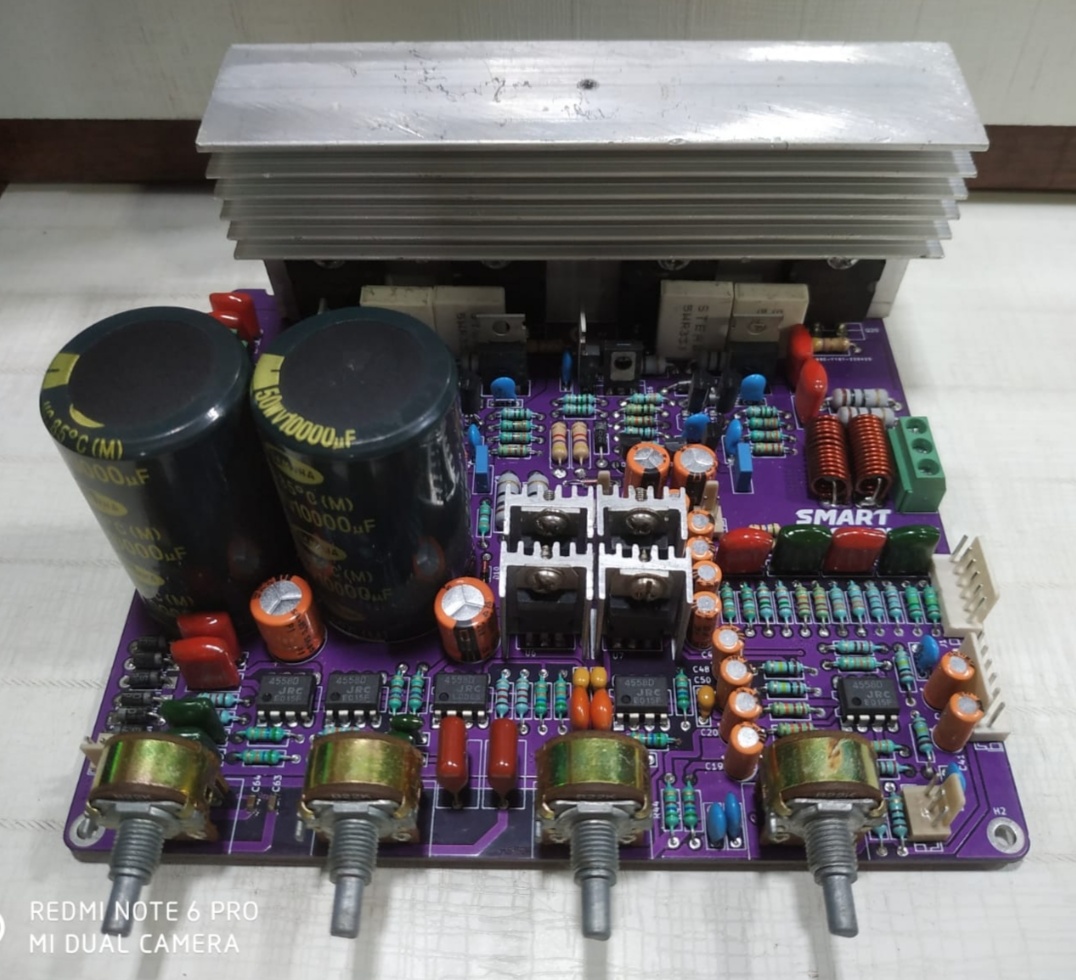

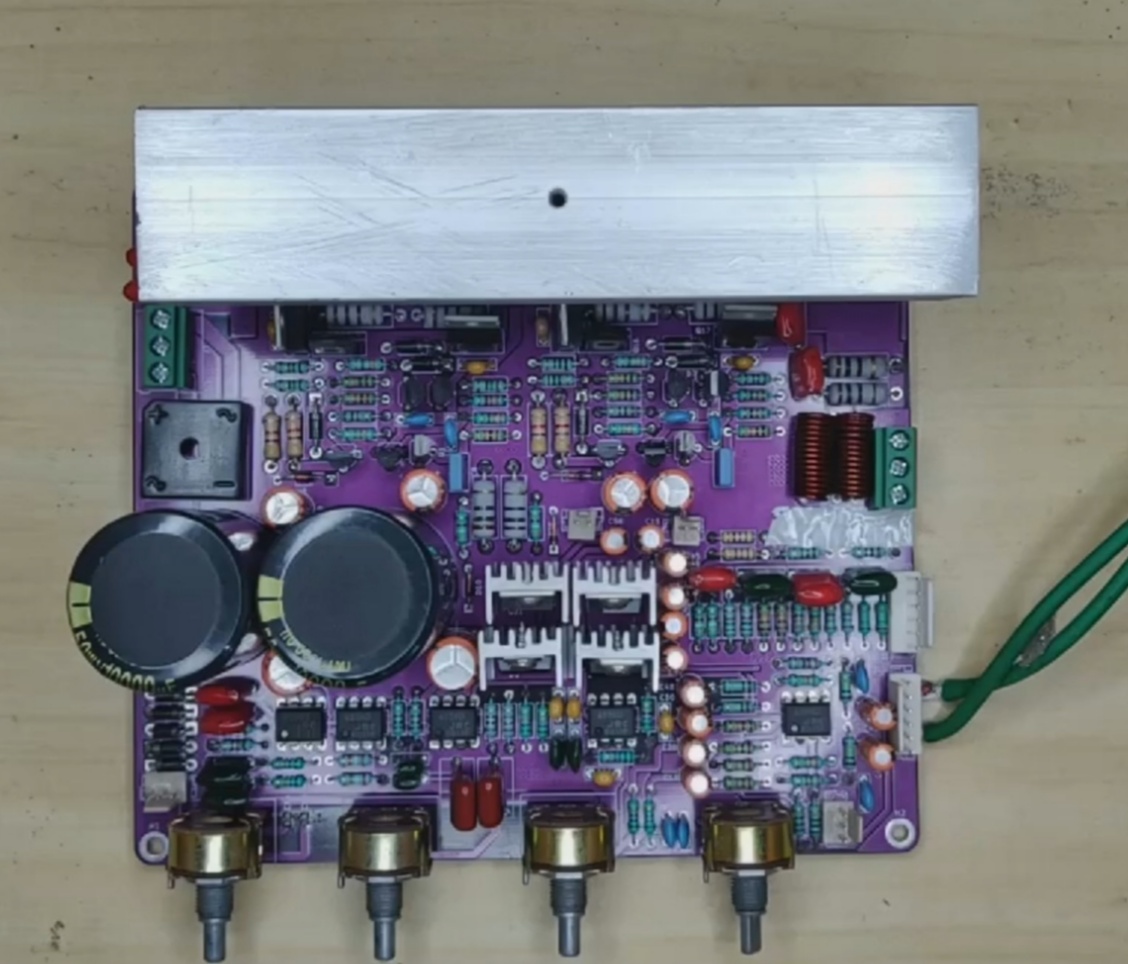

2. Board PCB color (Purple, Black, Green) As per Availability in Stock
